Ceramic Billets Sodium Carboxymethyl Suspension Stabilization Sodium CMC In Ceramic Decalcomania

Basic Properties
Place of Origin: China
Brand Name: Linguang
Certification: HALAL KORSHER ISO9001 HCCP ISO22000 ISO14001
Model Number: C1082 C1582 C1583 C0492 C1002 C1592 CH9 CVH9
Trading Properties
Minimum Order Quantity: 5mts
Price: USD
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1.5 ten thousand per year
Specifications
Other Name: Sodium Carboxymethyl Cellulose Package: 25 Kg
Function: Binder And Coating Color: White To Off White Color
Application: Ceramic Industry Solubility: Easily Soluble In Cold Water
High Light:

Ceramic Decalcomania Sodium CMC

,

Suspension Stabilization Sodium CMC

,

Ceramic Billets Sodium CMC

Product Description

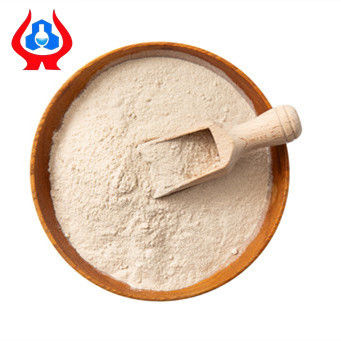

Sodium Carboxymethyl Cellulose For Ceramic Billets



CMC can be used in ceramic body, glazing pulp, and fancy glaze. Used in ceramic body, it is a good strengthening agent, which can strengthen the mouldability of mud and sand materials, facilitate body shaping and increase the folding strength of the green body. Used in glazing pulp and fancy glaze, it is a binder that plays a role of suspending, deflocculating and water holding.



Application in ceramic decalcomania


CMC, with good solubility and high transparency of the solution, as well as no residue, possesses the excellent shear-thinning and lubrication, and greatly enhance the decalcomania adaptability and
*Good printing rheology to make printing fluency
*Clear pattern by printing and maintain the consistent color
*High smoothness, good lubrication, excellent effect
*Good water solubility, no residue, no sticking net, no blocking net
*high transparency of solution, and good net permeability
*Excellent thixotropy and lubrication, and greatly enhance the decalcomania adaptability.





The application of CMC in ceramic billets



1. It can increase the bonding strength of the billet and make the billet easy to form;
2. Improve the flexural strength of the billet and effectively reduce the damage rate of the billet;
3. Evenly evaporate the moisture in the billet to prevent dry explosion and cracking.



Application of CMC in Ceramic Tile Bottom Glaze and Top Glaze



1. Keep the glaze in a stable dispersed state;

2. Improve the surface tension of glaze;

3. Slow down the diffusion of water from the glaze to the billet;

4. Increase the smoothness of the glaze surface;

5. To avoid cracking and printing breakage during the conveying process caused by a decrease in the strength of the body after glaze application;

6. Reduce pinholes on the glazed surface after sintering.




Specification
Types
Items
C1082 C1582 C1583 C0492 C1002 C1592 CH9 CVH9
Viscosity, mPa▪s
(Brookfield 25℃ 30rpm)
1% 450-800 900-1500 900-1500   350-600 600-1500 500-1000 >3000
2% 5-400 400-2000   400-900
Appearance White or slightly yellowish fibrous powder or particle
SVR
(Brookfield)
1% ≥0.85   ≥0.90
2%   ≥0.90
Degree of Substituion(D.S) 0.80-0.90 ≥0.92 ≥0.98 ≥0.92
Purity(%) According to customers request
Clorides(NACL w/%) ≤3.0 ≤6.0 ≤3.0
Loss on drying(w/%) ≤10.0
PH value 6.5-8.5
Clorides(NACL w/%) ≤0.5
